V56/V59 LCD TV Controller Board Model LA.MV56U.A with USB Player TSUMV56RUU-Z1
V56/V59 LCD TV Controller Board Model LA.MV56U.A with USB Player TSUMV56RUU-Z1
V56/V59 LCD TV Controller Board Model LA.MV56U.A with USB Player TSUMV56RUU-Z1
Information


1. General Description(概述)


LA.MV56U.A is a flat panel TV control board designed for Asia‐Pacific market, the board has excellent and mature performance . LA.MV56U.A can support LCD and LED panel, the maximum resolution supported is 1920x1080. It can drive a LCD or LED panel smaller than 26’ to get a cost‐effective and high performance and popular flat panel analog TV set.

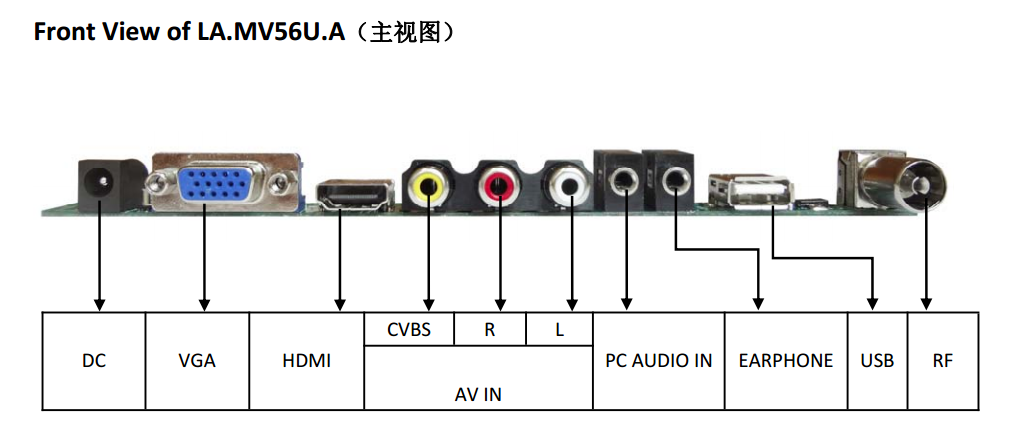

LA.MV56U.A can support the port including, DC, VGA, HDMI, AV IN, PC AUDIO, EARPHONE, USB, RF. It’s very easy to upgrade software by a USB disk for LA.MV56U.A LA.MV56U.A

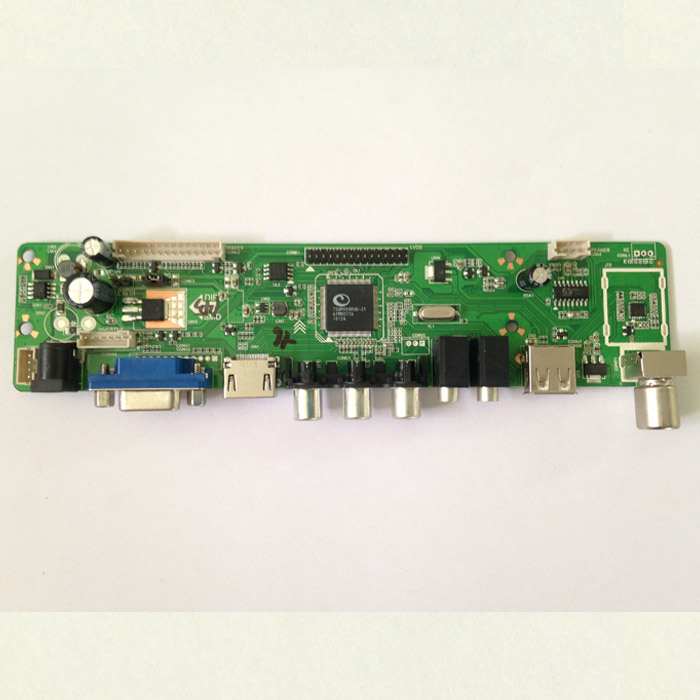

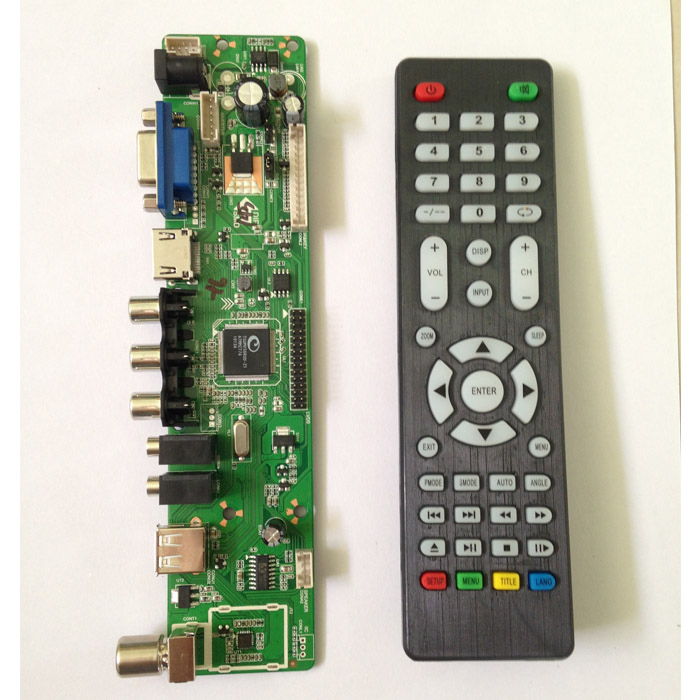

2. Product Photograph



3. Product Features


Chipset

(主芯片)



TSUMV56RUU‐Z1

Target Market

(目标市场)



Asia‐Pacific (亚太)

OSD Language

(OSD  语言)

S. Chinese(简体中文), T.Chinese(繁体中文),English(英文),Arab(阿拉伯语),

Uighur(维吾尔语), German(德语),French(法语),Spanish(西班牙语),…









Panel

(屏)

Panel Type

(屏类型)



LCD/LED

Panel Interface

(驱屏接口)

Single/Double 8bit LVDS

(单/双 8bit LVDS)

Max Resolution

(最大分辨率)



1920x1080



















TV INPUT

(电视输入)





















TV

Receive Range

(接收范围)



48.25MHz – 863.25MHz

Input Impedance

(输入阻抗)



75Ω

Color System

(彩色制式)



PAL/SECAM/NTSC

Sound System

(声音制式)



B/G, D/K, I, M/N

Channels

(预存频道)



200





TELETEXT





V56: 1000 Pages(页)



VIDEO INPUT

(视频输入)





PC



Format

(格式)

Max Resolution

(最高支持) 1920×1080@60Hz







AV

Color System

(彩色制式)



PAL/NTSC/SECAM

Video Level

(视频信号幅度)



1.0Vp‐p±5%

HDMI, YPbPr

480i, 480p, 576i, 576p, 720p, 1080i, 1080p





Audio Input

(音频输入)



PC

Input Level (输入幅度)



0.2~2.0 VRMS



AV

Input Level (输入幅度)



0.2~2.0 VRMS







Audio Output (音频输出)

Frequency Response (频率响应)



100Hz~15K Hz @±3dB(1KHz, ‐12dB reference signal)



Max Output Power

(最大输出功率)





2x2W(4Ω) THD+N<10%@1KHz







Power (电源)

Power Supply

(供电输入)



12V

Panel Power

(驱屏电压)



3.3V,5V,12V

Power Management

(电源管理)

Standby Power Consumption <0.3W(Board Only)

(板卡待机功耗小于 < 0.3W)

Comb Filter

(梳状滤波器)



3D

De interlace

(隔行转逐行)



3D

TSUMV56 USB MULTIMEDIA FORMAT (TSUMV56 USB 多媒体播放支持格式列表)



Media

(媒体)

File Ext. (扩展名)

Codec(编解码器)

Remark(备注)

Video(视频)

Audio(音频)



Movie



.avi



MJPEG

MP3, WMA, AAC, MP2,

Max Resolution And Frame Rate:

640×480@30fps

Max Data Rate: 10 Mbps

Xvid,MPEG‐2,MPEG‐4, DivX,H.264




.mp4

MPEG‐2, MPEG‐4, DivX,H.264

PCM, AC3

1920×1080@30fps

Max Data Rate: 20 Mbps

.ts/

.trp

MPEG‐2,H.264

.mkv/

.mov

MPEG‐4, H.264

.mpg

MPEG‐1, MPEG‐2



.dat



MPEG‐1



MP2

Max Resolution:352×288 Max Data Rate: 20 Mbps

.vob



MPEG‐2



Max Resolution:720×576 Max Data Rate: 20 Mbps

.rm/

.rmvb



V8, RV9, RV10



COOK

Max Resolution And Frame Rate:

1280×720@30fps

Max Data Rate:10 Mbps











Music



.mp3



‐‐



MP3

Sample Rate: 32K~48KHz Bit Rate: 128K~320Kbps Channel: Mono/Stereo



.wma



‐‐



WMA

Bit Rate: 8K~48Kbps Sample Rate:128K~320Kbps Channel: Mono/Stereo

.m4a/

.aac



‐‐



AAC

Sample Rate: 8K~48KHz Bit Rate: 128K~442Kbps Channel: Mono/Stereo








.jpg/

.jpeg

Progressive JPEG

Max Resolution: 1024×768

Baseline JPEG

Max Resolution: 15360×8640

.bmp

‐‐

Max Resolution: 9600×6400



.png

Non‐Interlaced

Max Resolution: 9600×6400

Interlaced

Max Resolution: 1200×800

Text

.txt

ANSI/UNICODE GB/UTF8

File Size:Max 1MB

File system: Hi Speed FS, FAT32, FAT16, NTFS(NTFS compressed file is not supported).

文件系统:Hi Speed FS, FAT32, FAT16, NTFS (不支持 NTFS 压缩文件。)

Note:

1. Licenses involved in specifications above are supposed to be obtained by customers themselves, eg: AC3

、DivX  、RM、RMVB、WMA、AAC.

1.以上规格涉及 License  部分需要客户自己获取。

2. MP4 cannot support GMC.

2. MP4  不支持 GMC。
