LCD Controller Board Kits
Home >> Products >> LCD Controller Board Kits
Input: DVI
Output: EDP
Support Resolution: Max 1920x1080
Product description: HDMI LCD Controller Board For 11.6" 13.3" 14" 15.6" 17.3" N116HSE N133HSE B156HAN01.1 N173HCE-E31 1920x1080 EDP LCD Screen
-
HDMI LCD Controller Board work for 11.6inch 13.3inch 14inch 15.6inch 17.3inch 1920x1080 IPS LCD Screen
Such as:
11.6inch 1920x1080:
N116HSE-EA1 N116HSE-EA2 N116HSE-EJ1 N116HSE-EB1 N116HSE-EBC N116HSE-EAC
13.3inch 1920x1080:
N133HSE-EA1 N133HSE-EA3 N133HSE-EB1 N133HSE-EB3
14inch 1920x1080:
B140HAN01.0 B140HAN01.1 B140HAN01.2 B140HAN01.3
15.6inch 1920x1080:
B156HAN01.1 B156HAN01.2 B156HTN03.0 LP156WF4-SP N156HGE-EA1 NV156FHM-N31 NV156FHM-N41
LTN156HL01 LTN156HL06-C01 LTN156HL07-401 LTN156HL09-401 LTN156HL02-201
17.3inch 1920x1080:
N173HCE-E31 N173HGE-E11 N173HGE-E21 B173HTN01.0 B173HTN01.1 LP173WF4-SPD1 LP173WF4-SPF1
LP173WF4-SPF2 LP173WF4-SPF3 LP173WF4-SPF4 LTN173HL01-401
Description:

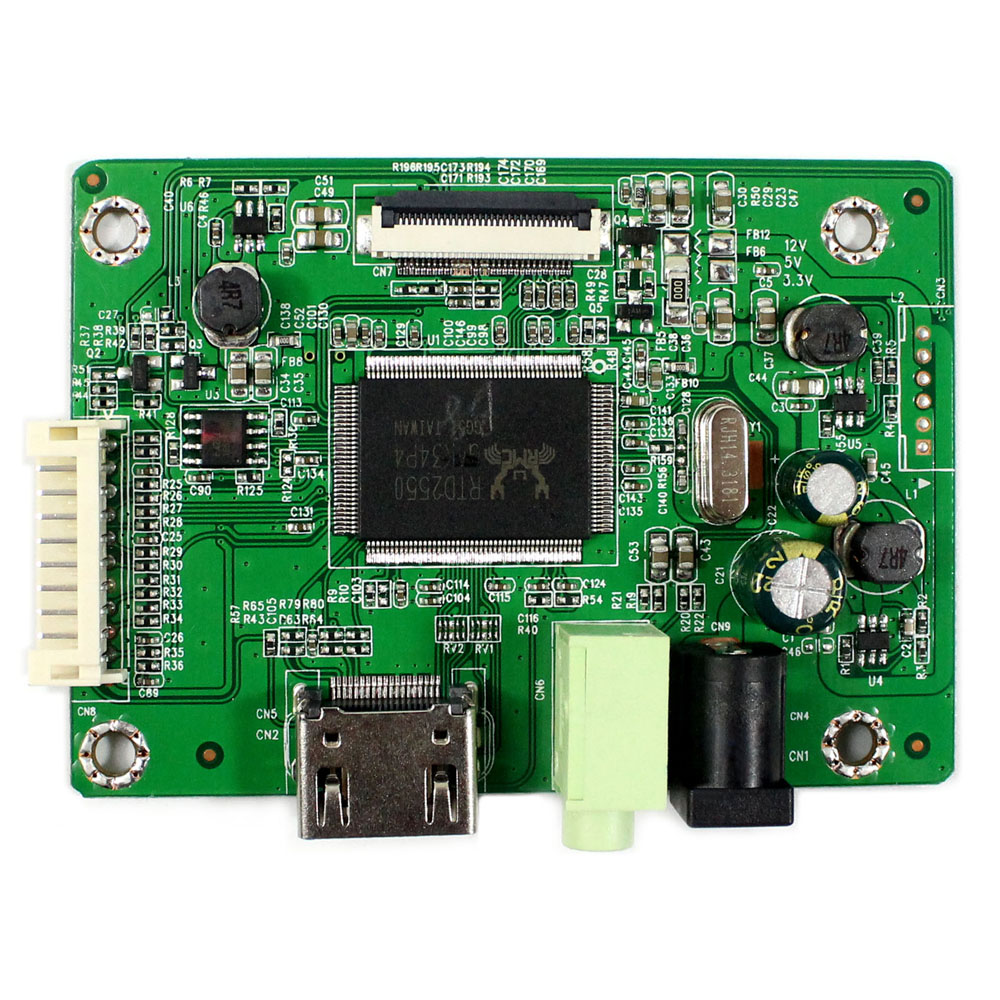

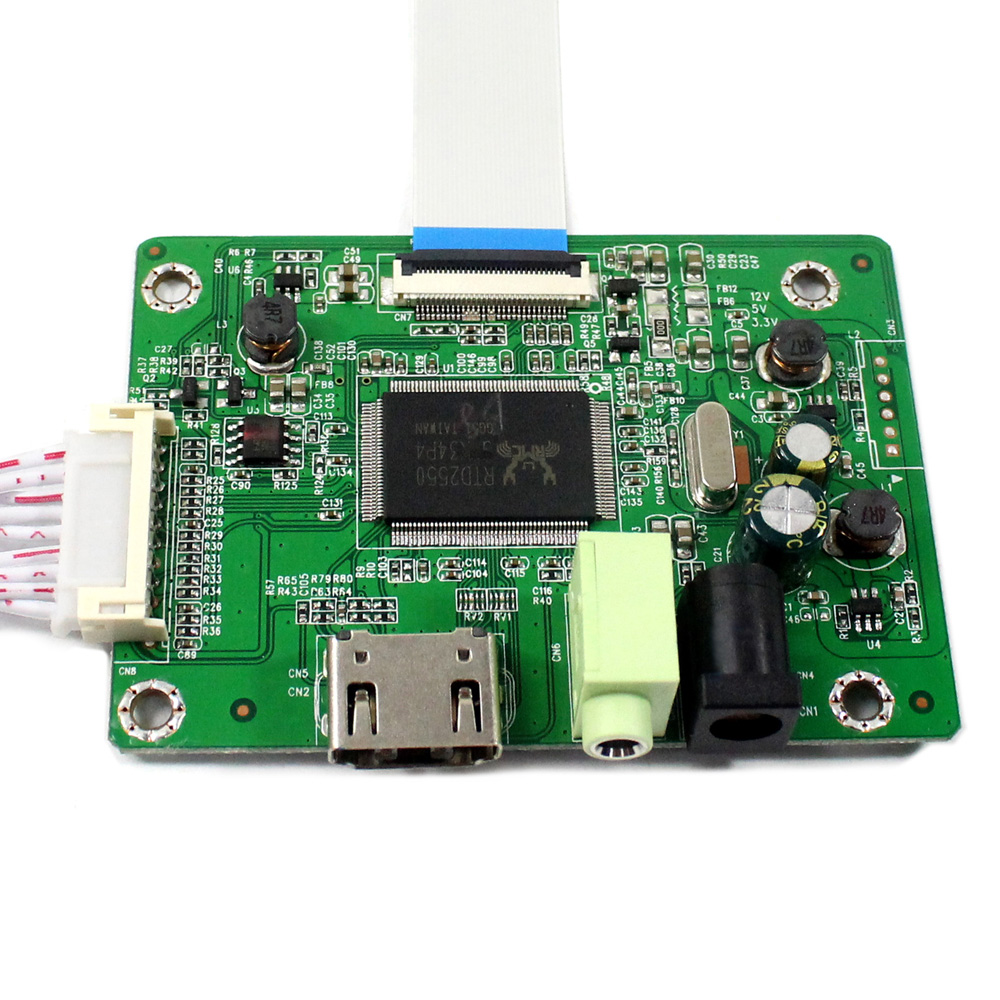

HDMI LCD Controller Board RTD2556_eDP_1H:
RTD2556_eDP_1H Driver Board supports dynamic contrast control, headphone input and Digital volume control simultaneously.
Board Size:77mm x 55mm x 16mm
Power Supply: 12V more than 2A
OSD Language: English, French, German, Italian, Spanish, Japanese, Korean and so on
Video Input: Interface HDMI(T.M.D.S)
Operation temperature::0~50℃
Panel Interface:0.5mm 30P FFC Connector
Key Function: Auto, Menu, UP, Down, Left, Right, Power
Input Output Connector: 30FFC connector EDP Output Port

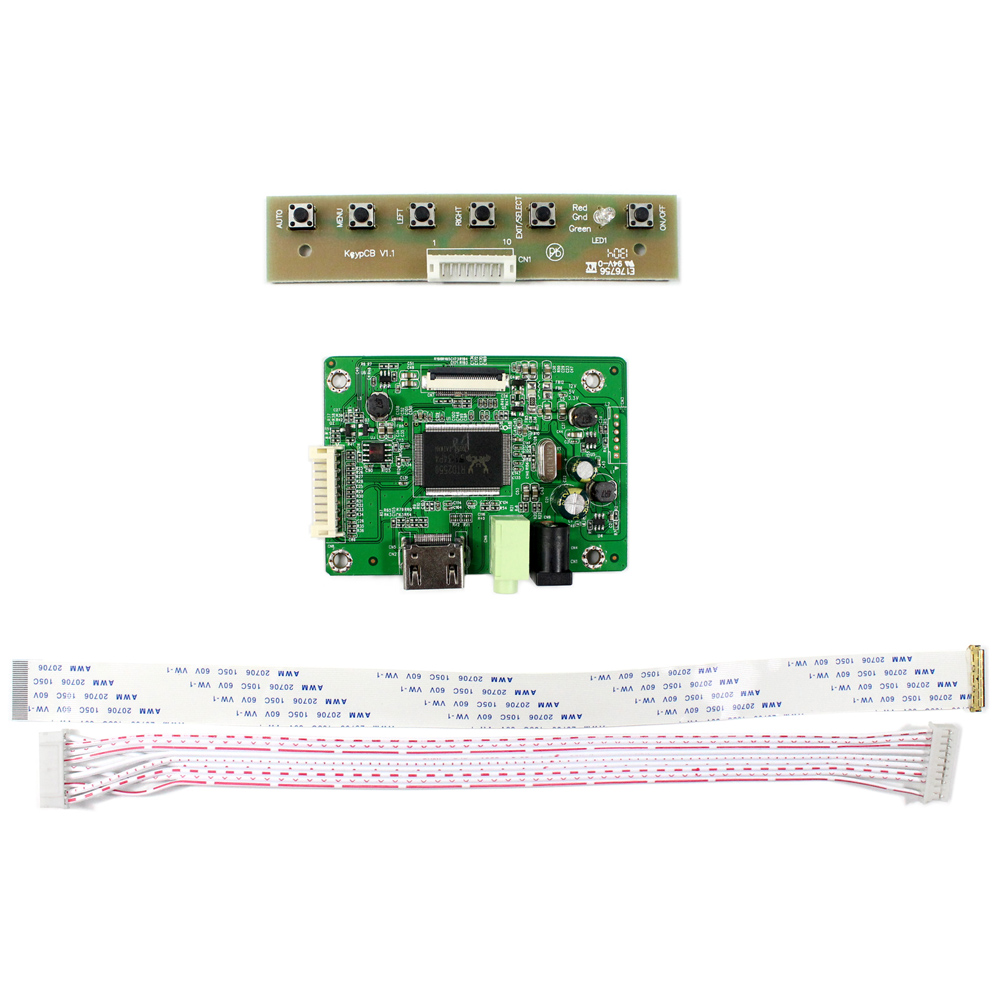

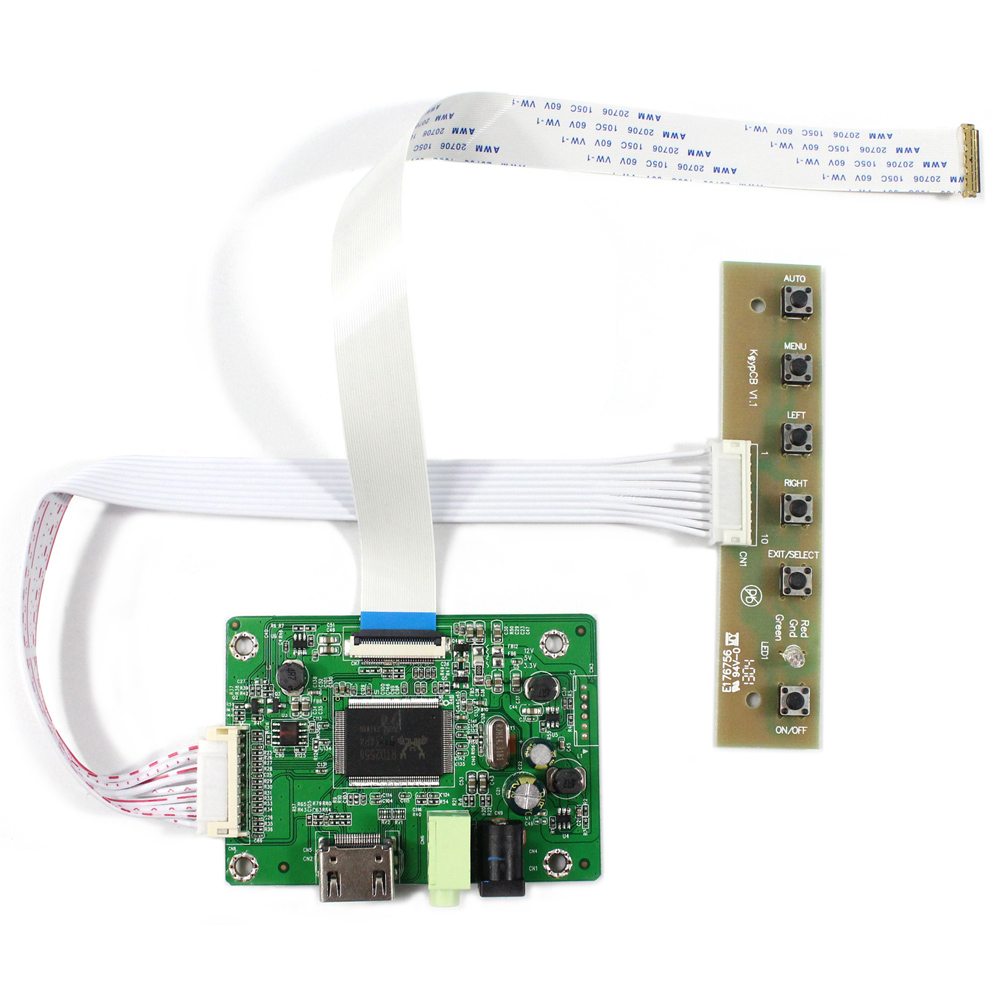

Packing list :
1× HDMI LCD Controller Board RTD2556_eDP_1H
1× Signal Cable
1× Keyboard with Wire
-
