Floppy Drive Emulator
Home >> Products >> Floppy Drive Emulator

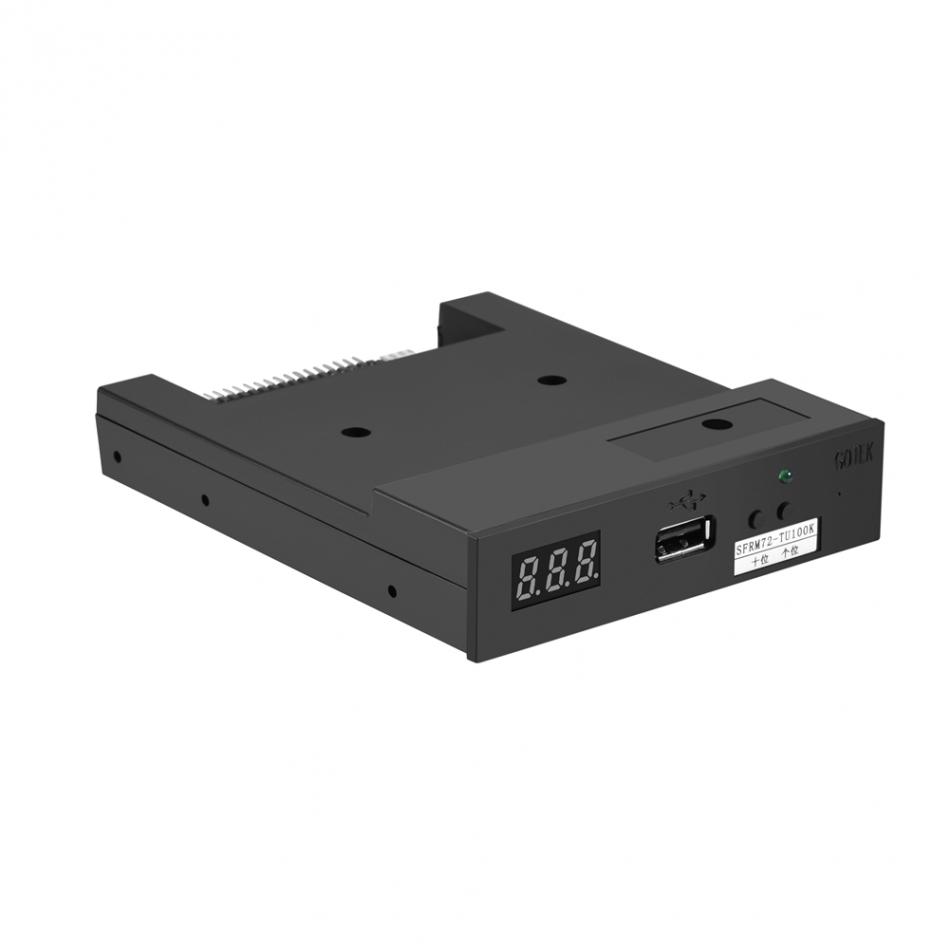

SFRM72-TU100K 3.5" USB 720KB Floppy Drive Emulator for Industrial Control Equipment
Model: SFRM72-TU100K code*: U10
Suitable machines:
Machines use 720KB floppy disk an driver, example : YAMAHA etc music instruments which use 720kb floppy disk and driver.
Floppy driver with 34pin interface, and 5V DC power plug
(example: SONY YE-DATA ALPS TEAC EPSON PANASONIC NEC )
Format of disk : Cylinders: 80 Tracks: 160 Sectors/Track: 9
Bytes/Sector: 512 Data transfer rate: 250 kbps
Encoding method: MFM.
34pin floppy driver interface, 5V DC power supply, easy to install.
Use ordinery usb flash drive as the medium for transfer design.
1000pcs partitions in usb flash drive can be used.
