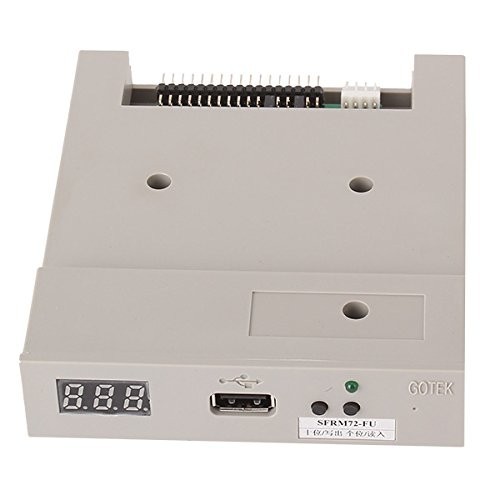

SFRM72-FU GoTek USB Drive Floppy Emulator for Tajima Barudan Happy Embroidery Machines

This USB floppy emulator is for Tajima TMEG, Barudan BEDS, BEMR, BEMS, BEMX and Happy embroidery machines, with has 720KB capacity and 34 pins connector.

Features:

Use normal usb flash drive as the medium for transfer design, support FAT16/FAT32 format.
34pin floppy driver interface,5V DC power supply,easy to install.
Capacity:720KB 2DD Cylinders:80 Tracks:160 Sectors/Track:9 Bytes/Sector:512 Data
transfer rate:500 kbps Encoding method:MFM.
720KB built-in flash memory,with FAT12 format,used for cache data from usb flash drive.
Within 720KB capacity of Files in root directory or 999 folders can be searched.
Long file name and 4-level directory in 999 folders supported.
Jumpers with function for different machines.
100 disk image file supported.(used for machine with non FAT disk format,example for make boot disk)

Button:
When no usb flash drive pluged on emulator:
Left button used to rise ten-digit,right botton used to rise single-digit, press 2 button together to rise hundred-digit, when the hundred-digit is 'b', the image mode used.
When an usb flash drive pluged on emulator:
Left button used to transfer data from built-in memory into usb flash drive,right button used to transfer data from usb flash drive into built-in memory.
This floppy drive suit for the following devices:
Embroidery Machine,electronic organ,Computer-controlled sewing machine,Machine tool and so on.

Specification:
Model:SFRM72-FU
Voltage:5V DC(example:SONY YE-DATA ALPS TEAC EPSON PANASONIC NEC )
Interface:USB port,4 pin power plug Power),34 pin plug(Standard floppy drive)
8segment numbers:represent folder name
Green led:status of read and write operation
USB port:connect USB flash drive
Housing Material:ABS
Size (L x W x H):Approx.12.3 x 10.1 x 2.4cm

Package Included:
1x USB Emulator
3x Screws
