Floppy Drive Emulator
Home >> Products >> Floppy Drive Emulator

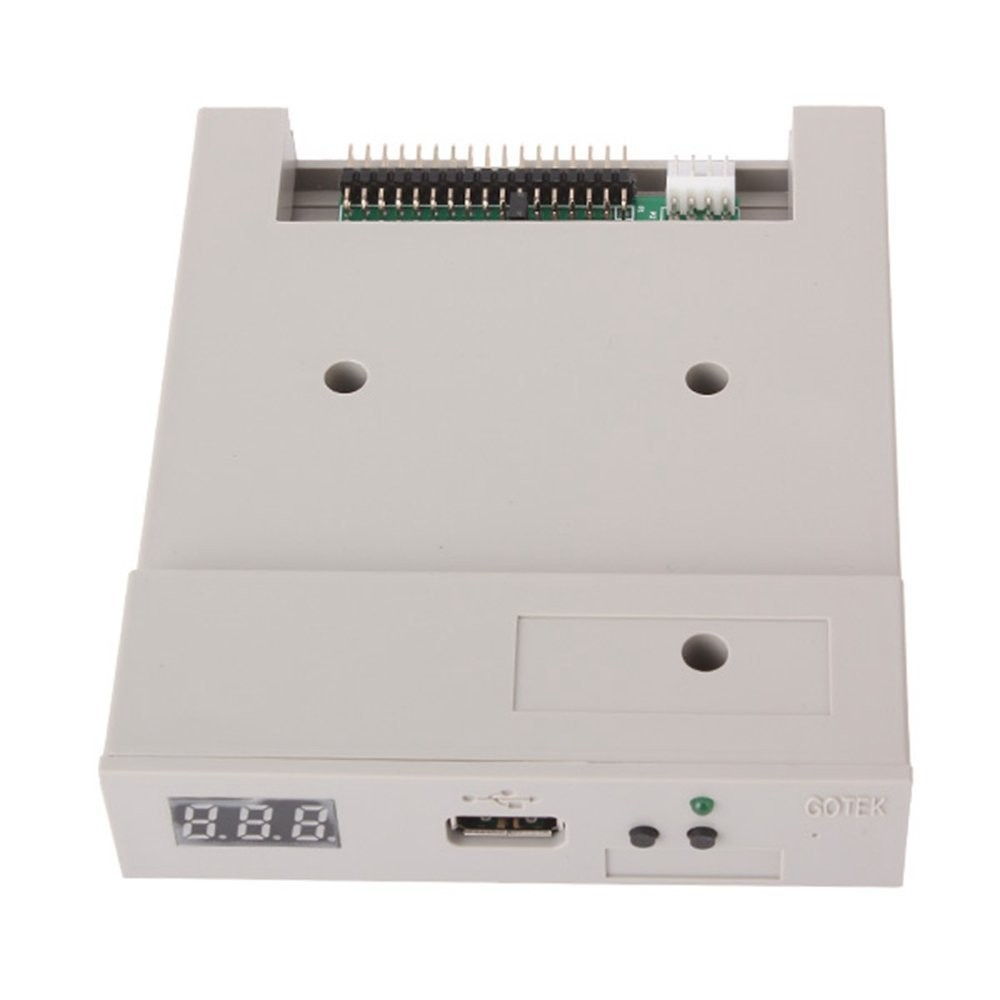

GOTEK Floppy to USB Emulator
Model: SFR1M44-U100 code*: U00
Suitable Machines:
Machines use normal 1.44MB floppy disk an driver, example : STOLL flat knitting machine, MULLER3 BONAS STAUBLI JC4 JC5 label weaving machine, YAMAHA KORG etc music instruments which use normal 1.44MB floppy disk and driver.
Floppy driver with below function needed:
Floppy driver with 34pin interface, and 5V DC power plug
(example: SONY YE-DATA ALPS TEAC EPSON PANASONIC NEC )
Use 2HD flpppy disk with 1.44MB capacity
Format of disk : Cylinders: 80 Tracks: 160 Sectors/Track: 18
Bytes/Sector: 512 Data transfer rate: 500 kbps
Encoding method: MFM.
Features:
34pin floppy driver interface, 5V DC power supply, easy to install.
Use ordinary usb flash drive as the medium for transfer design.
1000pcs partitions in USB flash drive can be used.
Built-in self-format function. (read relevant documents to use this function)
Panel:
