LCD Monitor Board

Home >> Products>> LCD/LED Controller Board >> LCD Monitor Board

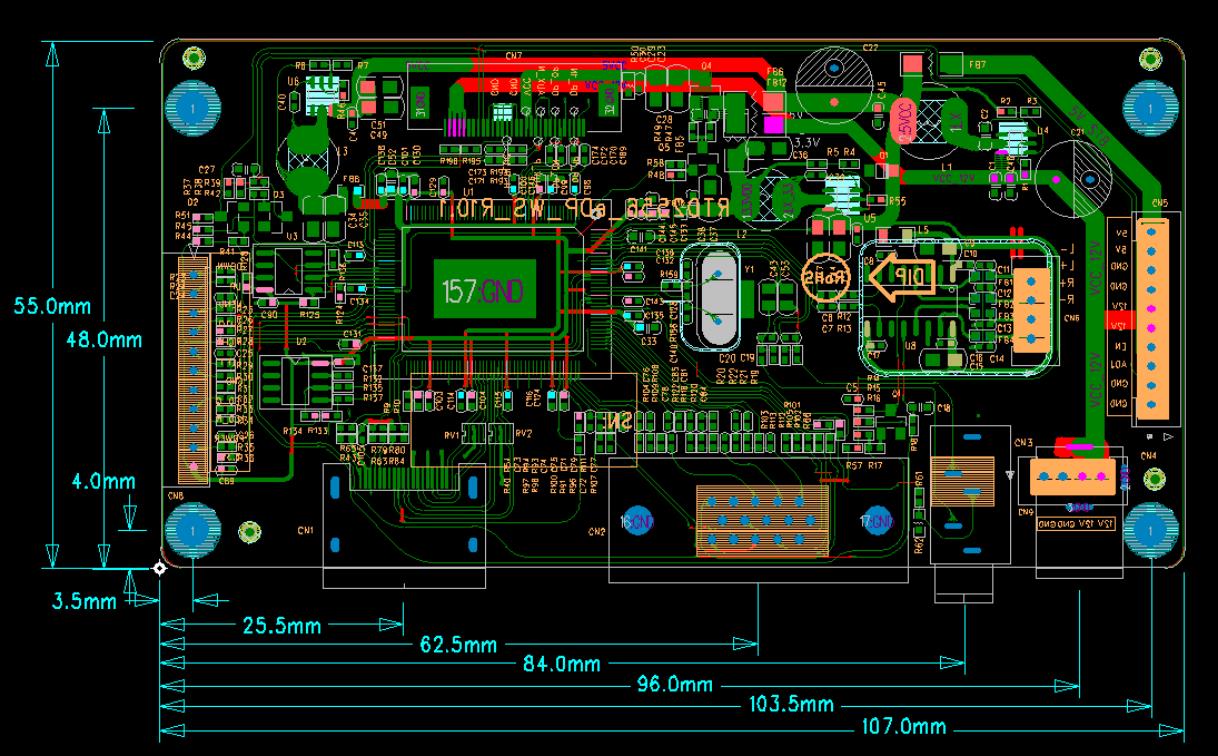

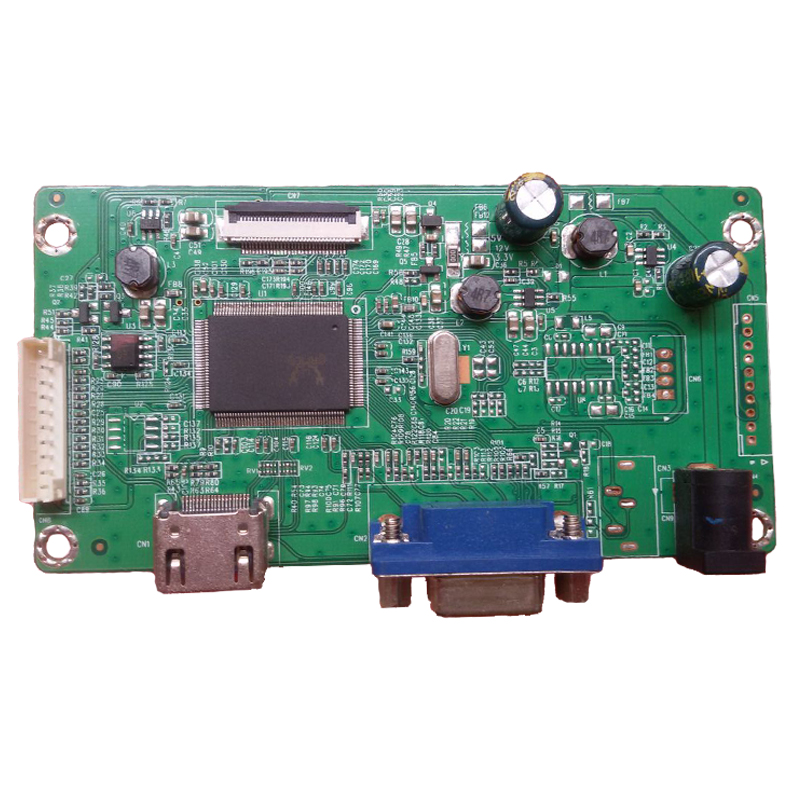

RTD2556-1A1H VGA HDMI LCD Controller Board with eDP Output
RTD2556-1A1H VGA HDMI LCD Controller Board with eDP Output
Model:RTD2556-1A1H
Input: VGA/HDMI
Support Resolution: Max 1920x1200
Panel signal Input: eDP
Product description: RTD2556-1A1H VGA HDMI LCD Controller Board with eDP Output
Information

Chipset

RTD2556-CG

Support Signal

PC

Support Max Resolution

1920*1200

Color

32bit

Horizontally frequency range

31.5-94.038KHz

Field Frequency range

60-75Hz

Interface

Input

VGA

RGB(0.7Vp-p),

Input

HDMI

HDMI(T.M.D.S)

Input

Audio

(1.0Vp-p)

Output

Panel interface

0.5mm distance 30pin FFC connector

Output

Earphone audio

(option)

Power

Input power

12V DC

Panel Voltage

3.3V/5V/12V available

Standby Power

<0.3W

OSD Language

Chinese,English,etc.



VGA Mode Table

Mode

Resolution

Horizontally Frequency (KHz)

Field Frequency (Hz)

WUXGA

1920*1200

74.556

60

WUXGA

1920*1080

67.5

60

UXGA

1680*1050

59.8

60

WXGA+

1440*900

55.5

60

SXGA

1280*1024

63.5
80.0

60
75

XGA

1024*768

48.4
56.5
60.0

60
70
75

SVGA

800*600

37.9
47.2
46.9

60
72
75

VGA

640*480

31.5
37.9
37.5

60
72
75

DOS

720*400

31.5

70
