LCD Monitor Board
Home >> Products>> LCD/LED Controller Board >> LCD Monitor Board

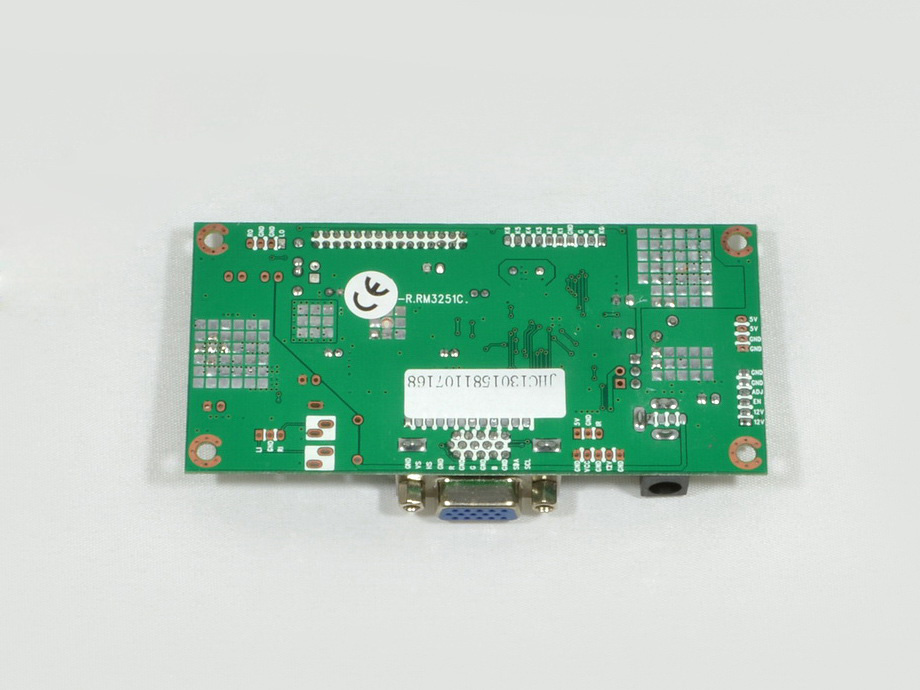

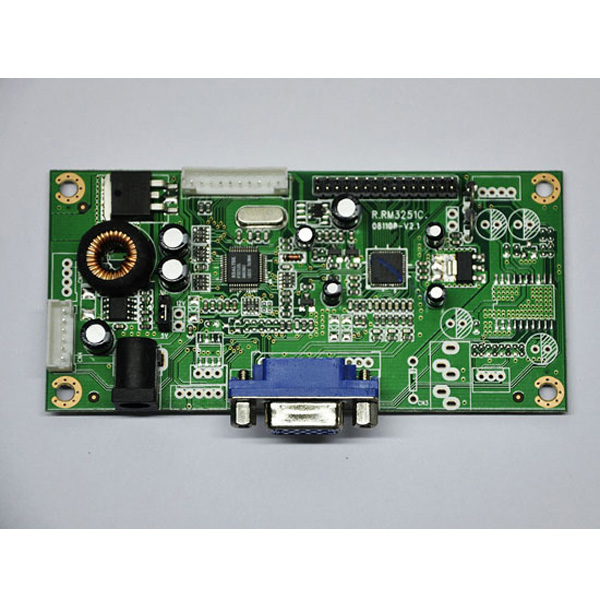

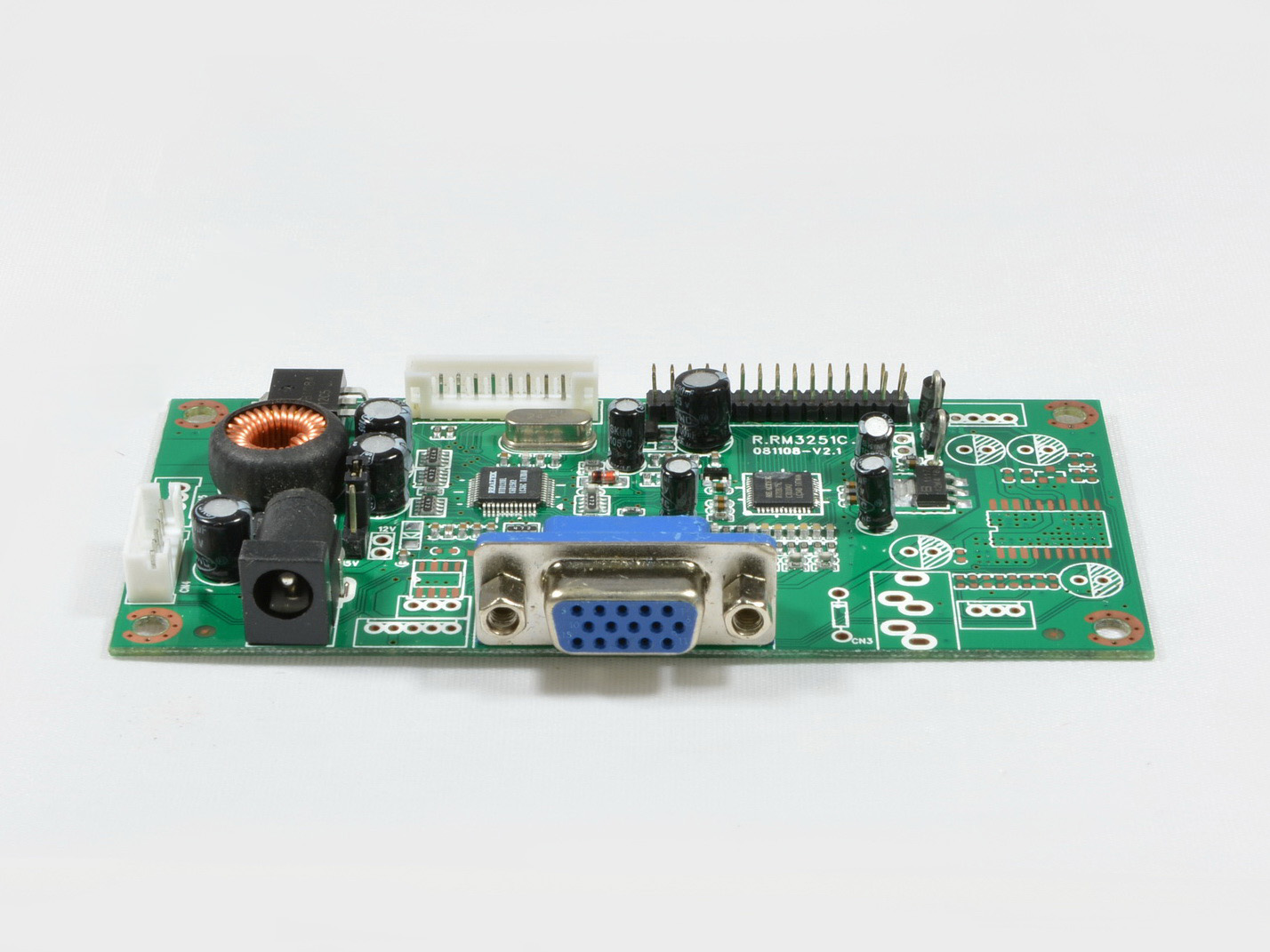

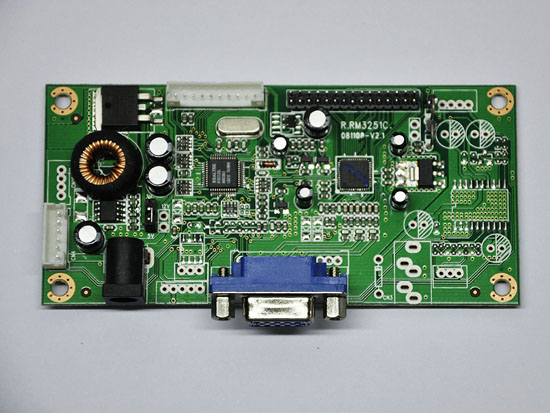

R.RM3251C LCD Controller Board
R.RM3251C LCD Controller Board
Information
Specification |
|||||||
| Chipset | RTD2025L | ||||||
| Panel interface | Double LVDS | ||||||
| Input signal | PC-RGB | ||||||
| Audio Output | None | ||||||
| Panel Resolutions | 1440*900 | ||||||
| OSD language | Chinese/English/French/German/Korean..(Customizable) | ||||||
| Power supply | +12V/Standby<1W | ||||||
| Voltage to panel | +3.3V/5V/12V/18V | ||||||
| Current to panel | 2A | ||||||
| Other |
Support internal 5V or 12V power board, Support the panel with two different voltage, Support remote control |
||||||
