Portable Monitor
Home >> Products >> Portable Monitor

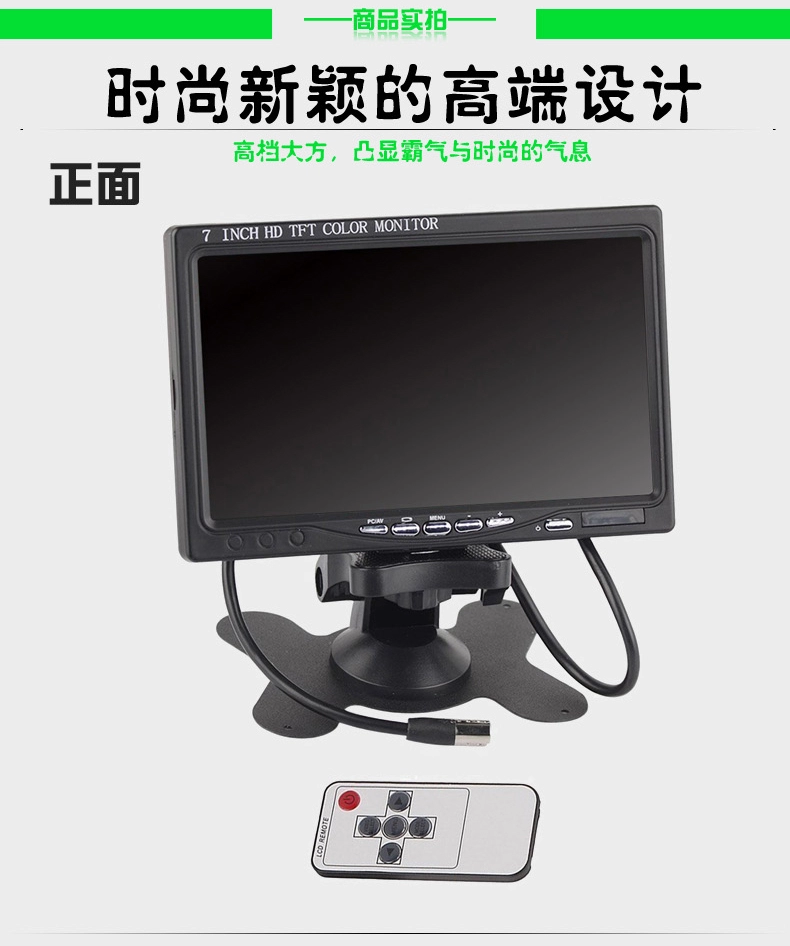

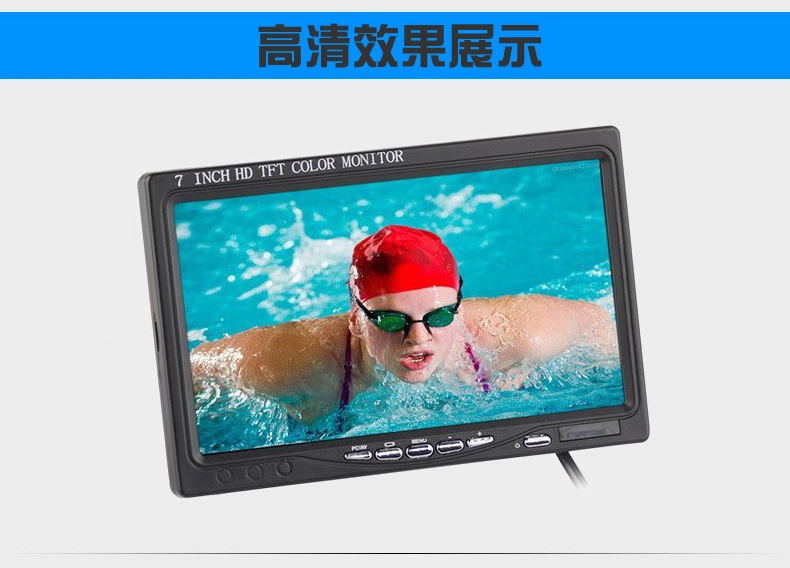

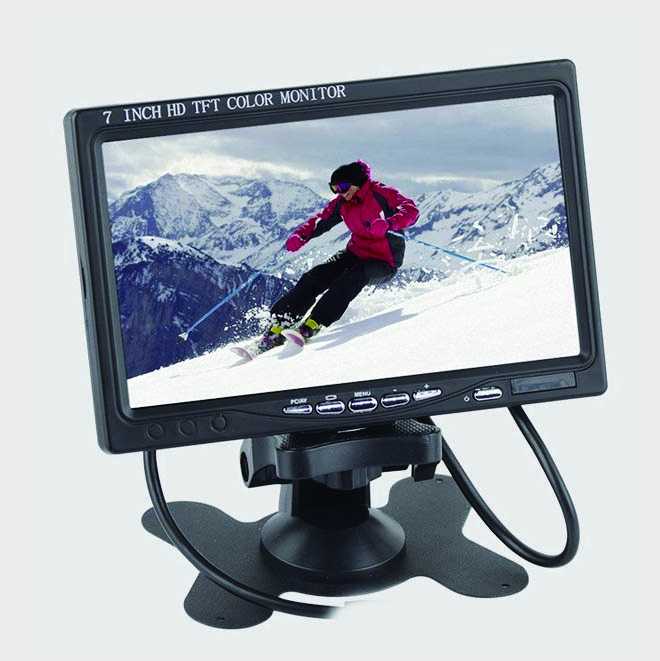

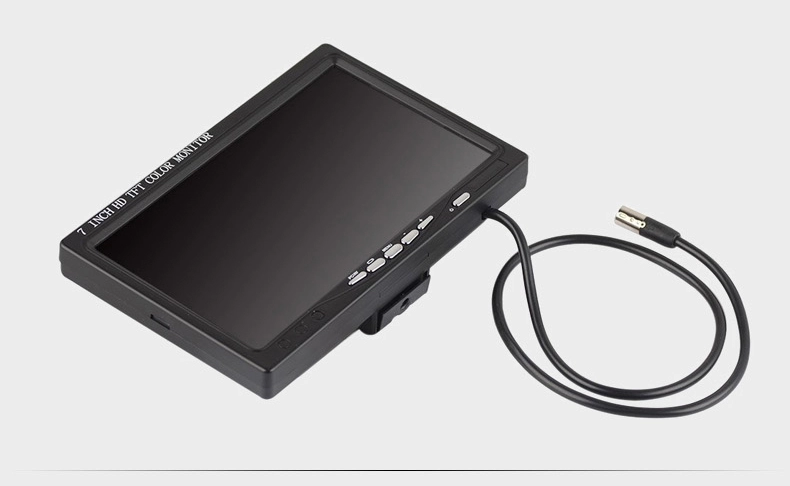

Portable 7 inch HDMI VGA AV TFT Color Car Rear View Monitor with 2 Channels Video Input
Portable 7 inch HDMI VGA AV TFT Color Car Rear View Monitor with 2 Channels Video Input
Information
Color: Black
Monitor Type: 16:9 ratio,7 inch new HD LED screen
Display Area: 154.08(W)×85.92(H)mm
Resolution: 800×480 60Hz,can support 1920×1080 75Hz
Synchronous Range: 30-80KHz horizontally,55-75Hz vertical
Dot Pitch: 0.0642(W)×0.1790(H)mm
Response Time: 8 ms
Plug and Play: VESA DDC 1/2B
Display Menu(OSD): Remote control/ buttons control
Display Color: 16.7M
Brightness: 250cd/m2 (400cd/m2 option)
Contrast Ratio: 800:1
Viewing Angle: Left/Right 170°(85°/85°)，Upper/Down 155°(70°/85°)
Lamp Lift Span: 50K
Input: All HDMI formats:[480I/480P/720P(50)/720P(60)/576I/576P/1080I(50)/1080P(50)/1080I(60)/1080P(60)]/VGA(all RGB resolution)/AV composite:NTSC/PAL/SCAME(Auto)
Touch Interface: USB or COM(RS232)
Touch Response Time: 10.4ms
Touch Count Time: >=100M
Support OS: DOS/Windows 9X,ME,2K,XP,7,Vista,NT,CE,LINUX,Mac,etc.
Monitor Size: 180mm*120mm*31mm
Box Packing: 302*215*80mm
Net Weight: 1.5KG
Power Supply: AC external: 110V-265VAC,50-60Hz/DC 12V 1.5A
Power Consumption: <10W Type
Temperature Range: Operation-10°C-60°C Storage:-20°C-80°C
Monitor Type: 16:9 ratio,7 inch new HD LED screen
Display Area: 154.08(W)×85.92(H)mm
Resolution: 800×480 60Hz,can support 1920×1080 75Hz
Synchronous Range: 30-80KHz horizontally,55-75Hz vertical
Dot Pitch: 0.0642(W)×0.1790(H)mm
Response Time: 8 ms
Plug and Play: VESA DDC 1/2B
Display Menu(OSD): Remote control/ buttons control
Display Color: 16.7M
Brightness: 250cd/m2 (400cd/m2 option)
Contrast Ratio: 800:1
Viewing Angle: Left/Right 170°(85°/85°)，Upper/Down 155°(70°/85°)
Lamp Lift Span: 50K
Input: All HDMI formats:[480I/480P/720P(50)/720P(60)/576I/576P/1080I(50)/1080P(50)/1080I(60)/1080P(60)]/VGA(all RGB resolution)/AV composite:NTSC/PAL/SCAME(Auto)
Touch Interface: USB or COM(RS232)
Touch Response Time: 10.4ms
Touch Count Time: >=100M
Support OS: DOS/Windows 9X,ME,2K,XP,7,Vista,NT,CE,LINUX,Mac,etc.
Monitor Size: 180mm*120mm*31mm
Box Packing: 302*215*80mm
Net Weight: 1.5KG
Power Supply: AC external: 110V-265VAC,50-60Hz/DC 12V 1.5A
Power Consumption: <10W Type
Temperature Range: Operation-10°C-60°C Storage:-20°C-80°C
