2K Controller Board
Home >> Products>> LCD/LED Controller Board >> 2K Controller Board

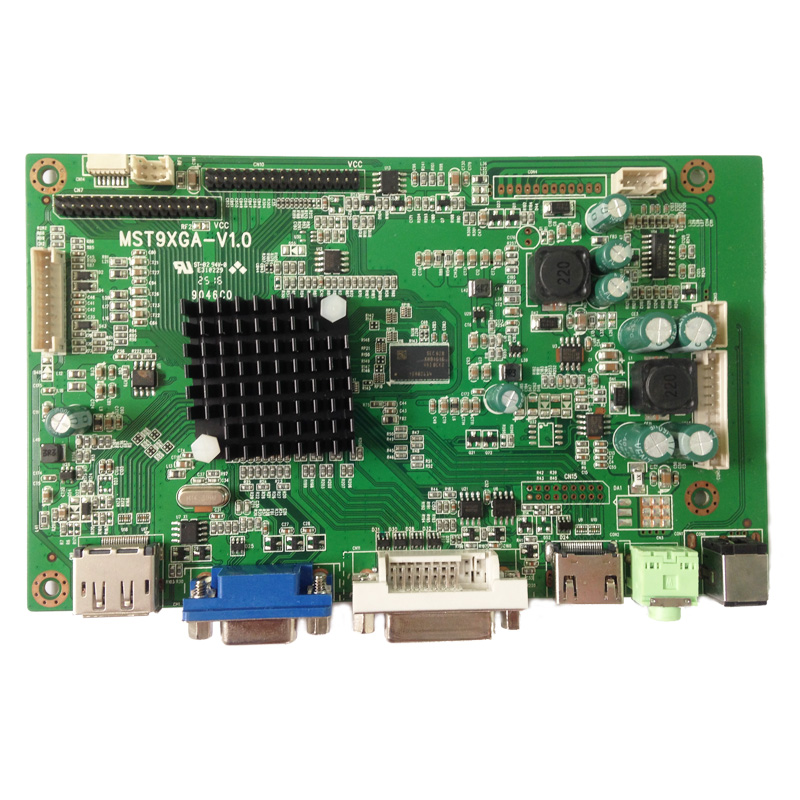

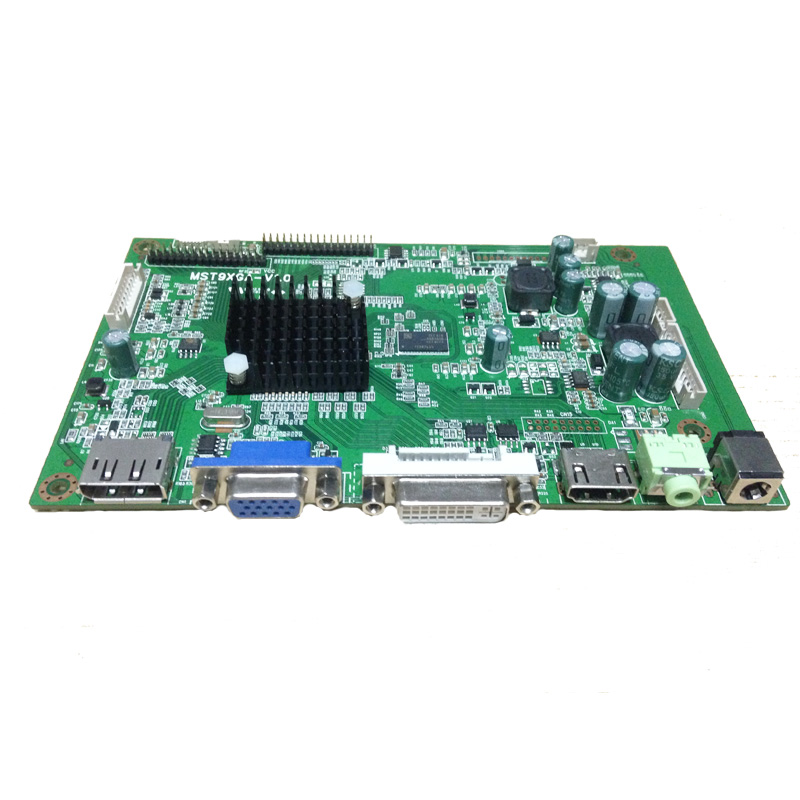

MST9XGA LCD Controller Board Support 2K Resolution
2K LCD Controller Board

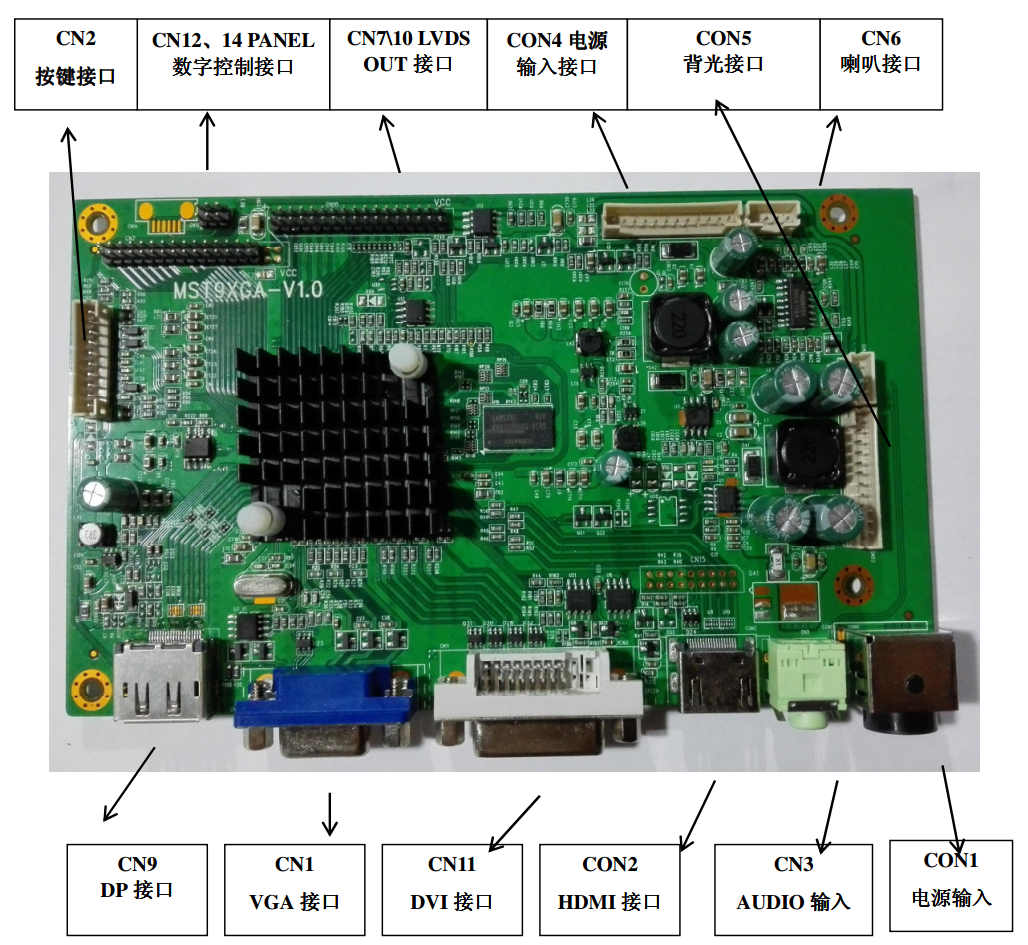

Inputs:DP/VGA/DVI/HDMI/Audio
Inputs:DP/VGA/DVI/HDMI/Audio
Information
2K Resolution LCD Controller Board
Chip: MST8757
Panel: Support Max resolution 2560x1600(30/36bit)downward compatibility
Signal Interface: signal/dual/four LVDS
Audio Outpus: 2x2W（4Ω）
Working Voltage: 24V
Panel Voltage: 5V
Stand-by Power: <1W
OSD language: Chinese/English/Korean/German/French/Spanish/Jananese,etc.
Inputs:DP/VGA/DVI/HDMI/Audio
VGA Mode Table
|
|
|||
| Mode | Resolution | Horizontal frequency (KHz) |
Vertical frequency(Hz) |
| WQXGA | 2560*1600 | 98.7 | 60 |
| WUXGA | 1920*1080 | 137.8 | 120 |
| WUXGA | 1920*1080 | 67．5 | 60 |
| UXGA | 1680*1050 | 133.4 | 120 |
| UXGA | 1680*1050 | 59.8 | 60 |
| WXGA+ | 1440*900 | 55.5 | 60 |
| SXGA | 1280*1024 |
63.5 80.0 |
60 75 |
| XGA | 1024*768 |
48.4 56.5 60.0 |
60 70 75 |
| SVGA | 800*600 |
37.9 47.2 46.9 |
60 72 75 |
| VGA | 640*480 |
31.5 37.9 37.5 |
60 72 75 |
| DOS | 720*400 | 31.5 | 70 |
