LCD Monitor Board

Home >> Products>> LCD/LED Controller Board >> LCD Monitor Board

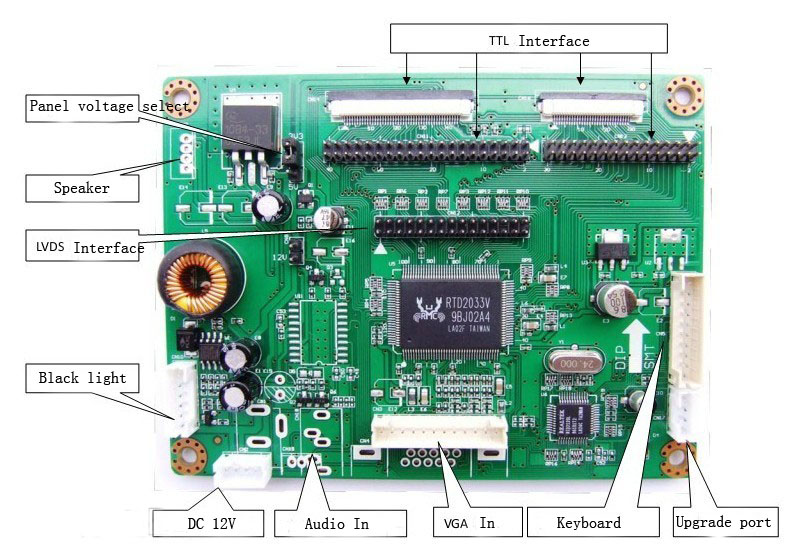

LM.R33.A LCD/LED Controller Board
LM.R33.A LCD/LED Controller Board
Model: LM.R33.A
VGA Controller Board
Information



Specification:

1. Support Resolutions:

                     VGA:640*480        SVGA:800*600

                      XGA:1024*768       SXGA+:1680*1050

2. Interface:

RGB input: 60Hz AT VGA SVGA XGA WXGA+ SXGA+

                         72Hz AT VGA SVGA

                         75Hz AT VGA SVGA XGA

AUDIO output: acoustic power 2*1W/8Ω

3. Panel Voltage:3.3V/5V/12V(option)

4. Panel interface:Single/Double LVDS, TTL 45PIN+30PIN FFC  30PIN+40PIN

5. Voltage requirement:DC/12V

6. Working environment:Relative humidity<80%,0-40℃

stand-by power consumption:<1W

7. ODS Language: Simplified Chinese Traditional Chinese, Korean, French ,  Italian, Spanish and  Portuguese
