LCD Monitor Board

Home >> Products>> LCD/LED Controller Board >> LCD Monitor Board

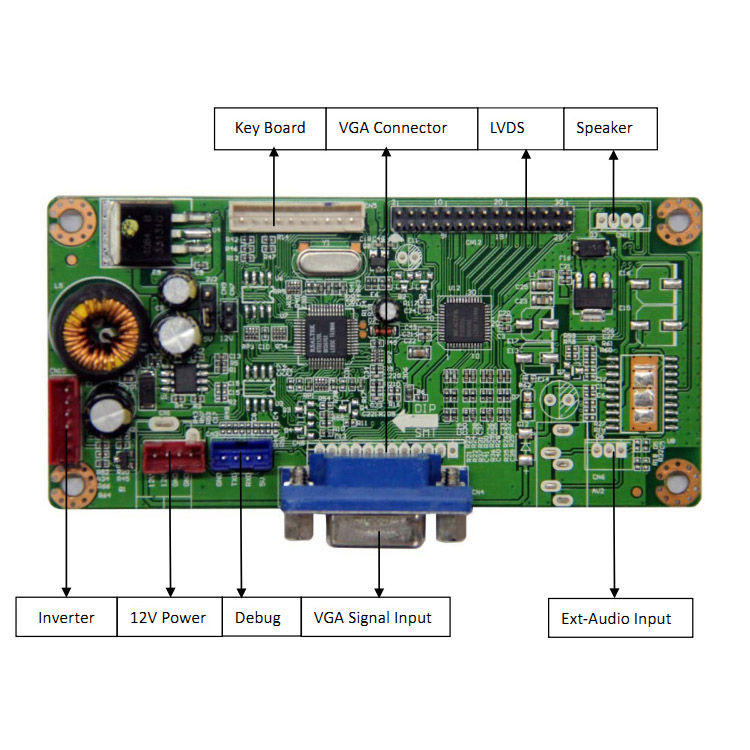

LCD Controller Board LM.R25.A4 With VGA
LCD Controller Board LM.R25.A4 With VGA
Model:LM.R25.A4
Output: VGA
MAX resolution: 1440*900
Panel interface: LVDS
Information

LM.R25.A* is a control board of LCD Monitor, maximum  resolution  supported  is 1440*900.  It has a VGA

input port,  supports VGA signal of horizontal synchronization signal  range from 30 to 80 KHz,  vertical

synchronization signal range from 56 to 75 Hz. There is an audio power amplifier of 2x1W (8Ω) on board.



Features:

Screen Interface

Interface

Single-port LVDS, dual-port LVDS

Resolution

1440 * 900 and below

Voltage

3.3V,5V,12V

Power

Interface

DC 2.0mm

Operating Voltage

12V

Current

250mA (not including the screen backlight and

screen control panel power consumption)

Standby Power

<1W

OSD Language

Simple Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Portuguese, Japanese, Korean

Key Function

Optional (5 keys, 6 key 7 key available)





Previous: M.NT68676.2A(HDMI+DVI+VGA+Audio) LCD/LED Controller Board
Next: No Information
