LCD Monitor Board
Home >> Products>> LCD/LED Controller Board >> LCD Monitor Board

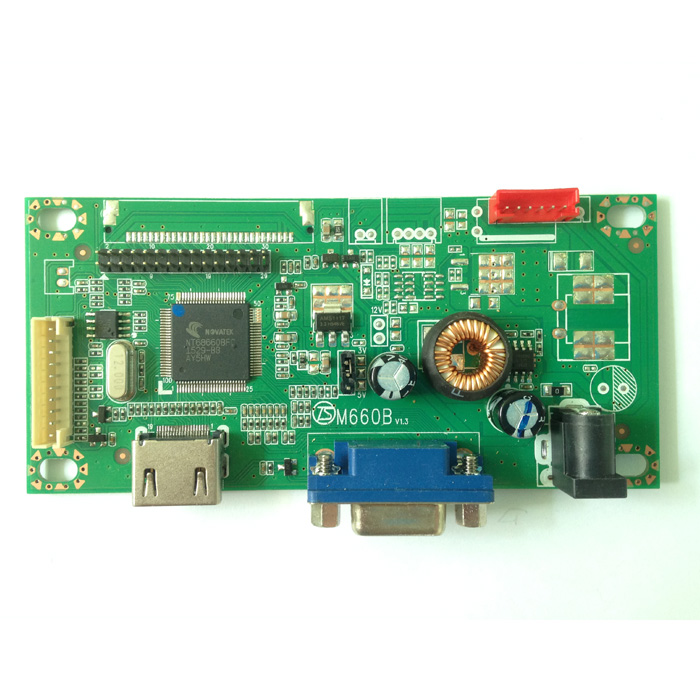

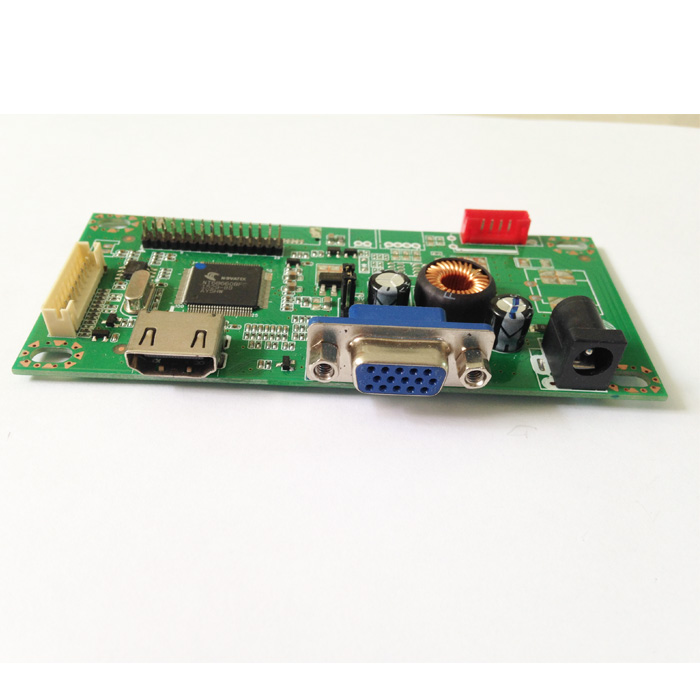

Model: M660B
HDMI + VGA LCD Driver Board Model M660B
This LCD controller board can support most sizes of LCD panel with LVDS signal from 6.4" to 47"
|
Mode |
Resolution |
Horizontal Frequency (KHz) |
Field Frequency (Hz) |
Standard |
|
WUXGA+ |
1920X1200 |
75.0 |
60 |
VESA |
|
UXGA |
1600X1200 |
75.0 |
60 |
VESA |
|
WXGA+ |
1440X900 |
75.0 |
60 |
VESA |
|
SXGA |
1280X1024 |
63.5 80.0 |
60 75 |
VESA |
|
XGA |
1024X768 |
48.4 56.5 60.0 |
60 70 75 |
VESA |
|
SVGA |
800X600 |
37.9 47.2 46.9 |
60 72 75 |
VESA |
|
VGA |
640X480 |
31.5 37.9 37.5 |
60 72 75 |
VESA |
|
DOS |
640X480 720X400 |
31.5 31.5 |
60 70 |
VESA |
