LVDS Cable
Home >> Products>> LCD Panel Cable >> LVDS Cable

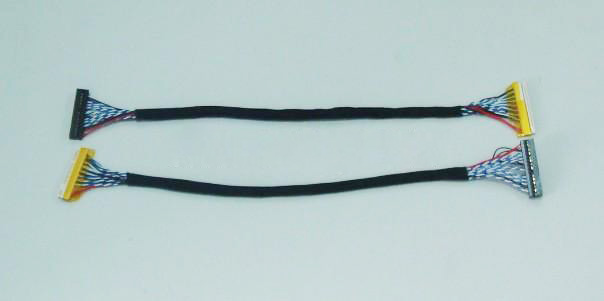

FIX-30P-S6 2CH 8Bit LVDS cable

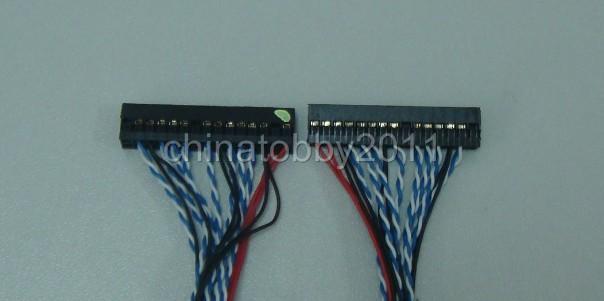

Connection for the LCD controller board:
|
PIN # |
SIGNAL NAME |
DESCRIPTION |
|
1 |
VSEL |
Power for panel |
|
2 |
VSEL |
Power for panel |
|
3 |
VSEL |
Power for panel |
|
4 |
GND |
Ground |
|
5 |
GND |
Ground |
|
6 |
GND |
Ground |
|
7 |
RXO0- |
Negative LVDS differential data input |
|
8 |
RXO0+ |
Positive LVDS differential data input |
|
9 |
RXO1- |
Negative LVDS differential data input |
|
10 |
RXO1+ |
Positive LVDS differential data input |
|
11 |
RXO2- |
Negative LVDS differential data input |
|
12 |
RXO2+ |
Positive LVDS differential data input |
|
13 |
GND |
Ground |
|
14 |
GND |
Ground |
|
15 |
RXOC- |
Positive LVDS differential clock input |
|
16 |
RXOC+ |
Ground |
|
17 |
RXO3- |
No Connection |
|
18 |
RXO3+ |
No Connection |
|
19 |
RXE0- |
LVDS EVEN 0 - Signal |
|
20 |
RXE0+ |
LVDS EVEN 0 + Signal |
|
21 |
RXE1- |
LVDS EVEN 1 - Signal |
|
22 |
RXE1+ |
LVDS EVEN 1 + Signal |
|
23 |
RXE2- |
LVDS EVEN 2 - Signal |
|
24 |
RXE2+ |
LVDS EVEN 2 + Signal |
|
25 |
GND |
Ground |
|
26 |
GND |
Ground |
|
27 |
RXEC- |
LVDS EVEN Clock - Signal |
|
28 |
RXEC+ |
LVDS EVEN Clock + Signal |
|
29 |
RXE3- |
LVDS EVEN 3 - Signal |
|
30 |
RXE3+ |
LVDS EVEN 3 + Signal |

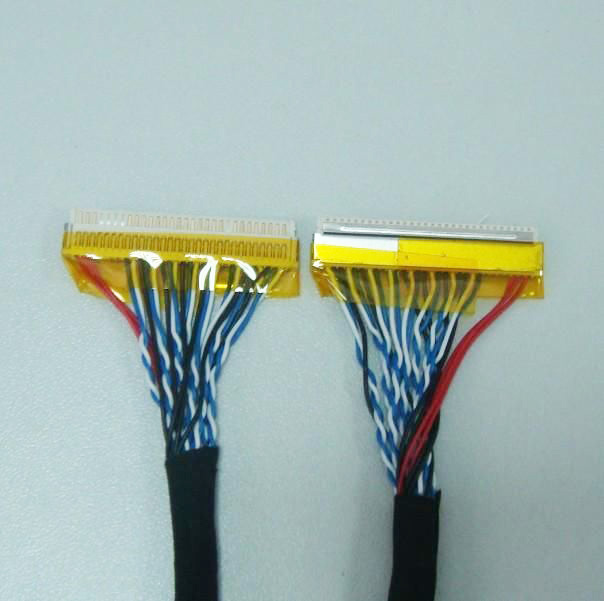

Connection for the LCD Panel:
|
1 |
GND |
Ground |
|
2 |
VCC |
Power Supply |
|
3 |
VCC |
Power Supply |
|
4 |
VEDID |
DDC Power |
|
5 |
NC |
No Connection |
|
6 |
CLKEDID |
DDC Clock |
|
7 |
DATAEDID |
DDC data |
|
8 |
Odd_RxIN0- |
Negaive LVDS differential data input |
|
9 |
Odd_RxIN0+ |
Positive LVDS differential data input |
|
10 |
GND |
Ground |
|
11 |
Odd_RxIN1- |
Negaive LVDS differential data input |
|
12 |
Odd_RxIN1+ |
Positive LVDS differential data input |
|
13 |
GND |
Ground |
|
14 |
Odd_RxIN2- |
Negaive LVDS differential data input |
|
15 |
Odd_RxIN2+ |
Positive LVDS differential data input |
|
16 |
GND |
Ground |
|
17 |
Odd_RxCLKIN- |
Negaive LVDS differential clock input |
|
18 |
Odd_RxCLKIN+ |
Positive LVDS differential clock input |
|
19 |
GND |
Ground |
|
20 |
Even_RxIN0- |
Negaive LVDS differential data input |
|
21 |
Even_RxIN0+ |
Positive LVDS differential data input |
|
22 |
GND |
Ground |
|
23 |
Even_RxIN0- |
Negaive LVDS differential data input |
|
24 |
Even_RxIN0+ |
Positive LVDS differential data input |
|
25 |
GND |
Ground |
|
26 |
Even_RxIN0- |
Negaive LVDS differential data input |
|
27 |
Even_RxIN0+ |
Positive LVDS differential data input |
|
28 |
GND |
Ground |
|
29 |
Even_RxCLKIN- |
Negaive LVDS differential clock input |
|
30 |
Even_RxCLKIN+ |
Positive LVDS differential clock input |
Can work with below LCD:
|
B150PG03_V0 |
LP141WP1 |
LP171WP4(TL)(B4) |
LQ170M1LA2A |
LTN154P3-L01 |
|
B150PN01 |
LP150E02(A2)(P1) |
LP171WP4(TL)(B5) |
LQ170M1LA3C |
LTN154U1-L01 |
|
B154PW01 |
LP150E06 |
LP171WP4(TL)(N2) |
LQ170M1LA4B |
LTN154U1-L02 |
|
B154SW01 |
LP150E06 (A3)(K2) |
LP171WP4(TL)(R2) |
LQ170M1LA4G |
LTN154U2-L04 |
|
B170PW01 |
LP150E07 |
LP171WP4-TLN1 |
LTD121KM2M |
LTN154U2-L06 |
|
B170PW02 |
LP150U03(A2)(P1) |
LP171WU1 |
LTD141EM6K |
LTN154WU1-A1 |
|
B170PW03 |
LP150U1 |
LP171WU1(A4)(K2) |
LTD154EZ0D |
LTN170CT01-001 |
|
B170PW04 |
LP150U1-A2 |
LP171WU1(A4)(K5) |
LTN106W1-L01 |
LTN170U1-L01 |
|
B170PW05 |
LP150X08-A2 |
LP171WU1(TL)(A2) |
LTN141P2-L01 |
LTN170WP-L02 |
|
B170PW06 |
LP154WP1 |
LP171WU1(TL)(A5) |
LTN141P4-L01 |
LTN170WU-L01 |
|
B170UW01 |
LP154WU1 (A1) |
LP171WU1(TL)(B2) |
LTN141P4-L04 |
LTN170WU-L02 |
|
B170UW02 |
LP154WU1(A1)(K2) |
LP171WU1-TLA8 |
LTN141WD-L01 |
LTN170WX-L01 |
|
CLAA150PB0B03A |
LP154WU1(A1)(K2) |
LP171WU3-TLA1 |
LTN141WD-L07 |
LTN170WX-L03 |
|
HSD150PK14-A00 |
LP154WU1(A1)(K3) |
LP171WX2 |
LTN141WD-L07 (B) |
LTN170WX-L05 |
|
HSD170MGW1-A00 |
LP154WU1(TL)(A1) |
LP171WX2(A4) |
LTN150P2-L01 |
LTN170WX-L08 |
|
HT14P12-100 |
LP154WU1(TL)(A2) |
LP171WX2(A4)(K1) |
LTN150P2-L03 |
LTN170X2-L02 |
|
HV150UX1-100 |
LP154WU1(TL)(B1) |
LP171WX2(A4)(K9) |
LTN150P3-L01 |
LTN190W1 |
|
HV150UX1-101 |
LP154WU2(TL)(A2) |
LP171WX2(TL)(A2) |
LTN150P4-L02 |
N150P3-L01 |
|
HV150UX1-L01 |
LP171W01 |
LP171WX2(TL)(A3) |
LTN150PE-L01 |
N150U3-L01 |
|
IASX12S |
LP171W01(A4) |
LQ150U1LA03 |
LTN150PF-L04 |
N154Z1-L02 |
|
IAUX14 |
LP171W01(A4)(K1) |
LQ150U1LH22 |
LTN150PG-L02 |
N170C2-L01 |
|
IAUX14P |
LP171WP4 |
LQ150U1LW03 |
LTN150PG-L03 |
N170C2-L02 |
|
IAUX14S |
LP171WP4(TL)(02) |
LQ150U1LW22 |
LTN154P1-L02 |
QD17TL02 |
|
ITSX95C |
LP171WP4(TL)(03) |
LQ154M1LW02 |
LTN154P1-L03 |
TX41D56VC1CAA |
|
ITSX95E |
LP171WP4(TL)(B1) |
LQ154M1LW12 |
LTN154P1-L04 |
TX41D97VC1GAA |
|
ITUX97H |
LP171WP4(TL)(B3) |
LQ170M1LA04 |
