LVDS Cable
Home >> Products>> LCD Panel Cable >> LVDS Cable

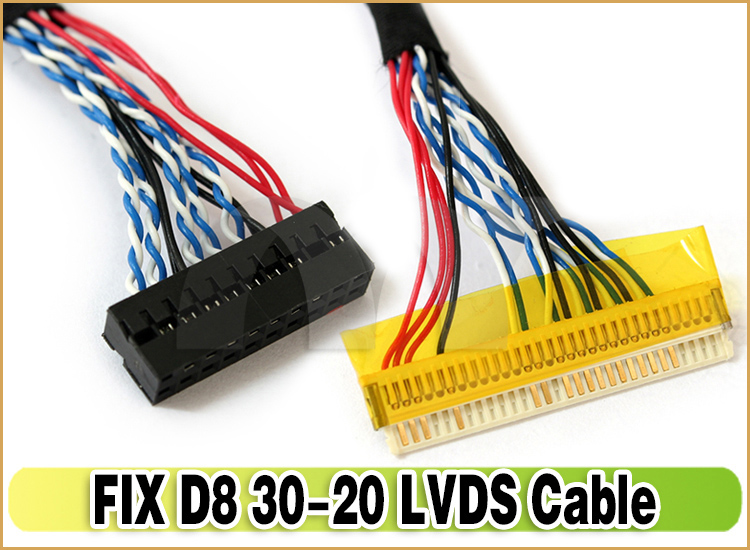

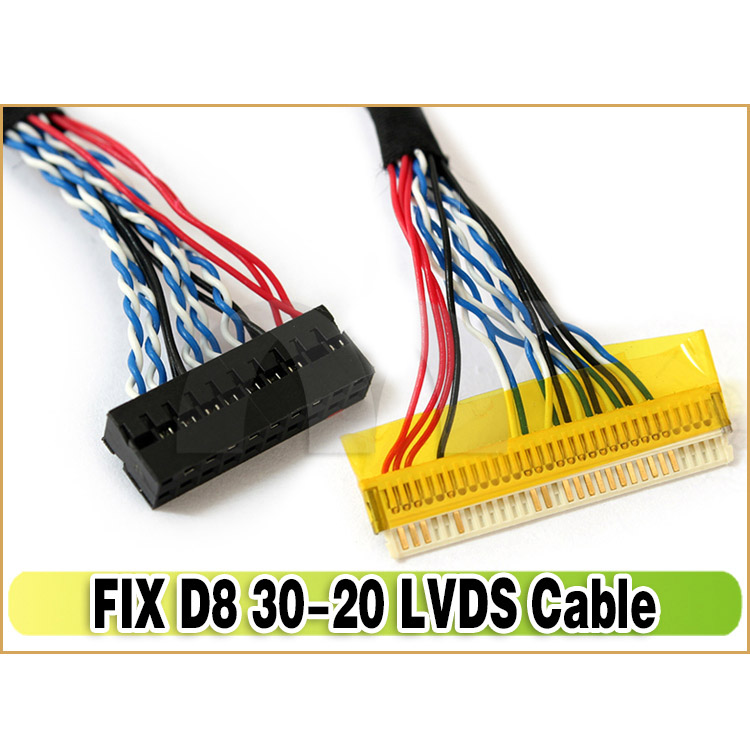

FIX-30P-D8 1ch 8bit LVDS Cable for LCD Panels

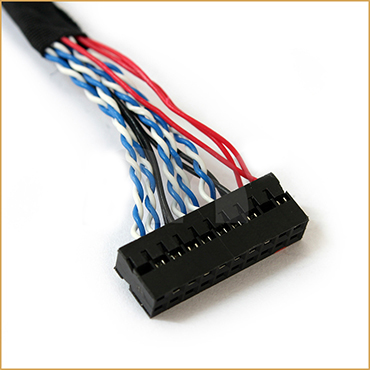

(2x15pin/2.0) the black connector pin sequence:
|
· Pin no |
Symbol |
Function |
Pin no |
Symbol |
Function |
|
1 |
LCD-VDD |
Power for Panel |
16 |
RXOC+ |
LVDS ODD Clock + Signal |
|
2 |
LCD-VDD |
Power for Panel |
17 |
RXO3- |
LVDS ODD 3 - Signal |
|
3 |
LCD-VDD |
Power for Panel |
18 |
RXO3+ |
LVDS ODD 3 + Signal |
|
4 |
GND |
Ground |
19 |
RXE0- |
LVDS EVEN 0 - Signal |
|
5 |
GND |
Ground |
20 |
RXE0+ |
LVDS EVEN 0 + Signal |
|
6 |
GND |
Ground |
21 |
RXE1- |
LVDS EVEN 1 - Signal |
|
7 |
RXO0- |
LVDS ODD 0 - Signal |
22 |
RXE1+ |
LVDS EVEN 1 + Signal |
|
8 |
RXO0+ |
LVDS ODD 0 + Signal |
23 |
RXE2- |
LVDS EVEN 2 - Signal |
|
9 |
RXO1- |
LVDS ODD 1 - Signal |
24 |
RXE2+ |
LVDS EVEN 2 + Signal |
|
10 |
RXO1+ |
LVDS ODD 1 + Signal |
25 |
GND |
Ground |
|
11 |
RXO2- |
LVDS ODD 2 - Signal |
26 |
GND |
Ground |
|
12 |
RXO2+ |
LVDS ODD 2 + Signal |
27 |
RXEC- |
LVDS EVEN Clock - Signal |
|
13 |
GND |
Ground |
28 |
RXEC+ |
LVDS EVEN Clock + Signal |
|
14 |
GND |
Ground |
29 |
RXE3- |
LVDS EVEN 3 - Signal |
|
15 |
RXOC- |
LVDS ODD Clock - Signal |
30 |
RXE3+ |
LVDS EVEN 3 + Signal |

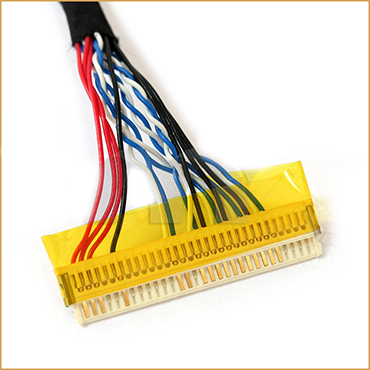

30pin connector pin sequence (the connector to LCD LVDS interface):
|
· PIN # |
SIGNAL NAME |
DESCRIPTION |
|
1 |
NC |
No Connection |
|
2 |
NC |
No Connection |
|
3 |
NC |
No Connection |
|
4 |
GND |
Ground |
|
5 |
RxIN0- |
LVDS receiver signal channel 0 |
|
6 |
RxIN0+ |
LVDS receiver signal channel 0 |
|
7 |
GND |
Ground |
|
8 |
RxIN1- |
LVDS receiver signal channel 1 |
|
9 |
RxIN1+ |
LVDS receiver signal channel 1 |
|
10 |
GND |
Ground |
|
11 |
RxIN2- |
LVDS receiver signal channel 2 |
|
12 |
RxIN2+ |
LVDS receiver signal channel 2 |
|
13 |
GND |
Ground |
|
14 |
RxCLKIN- |
LVDS receiver signal clock |
|
15 |
RxCLKIN+ |
LVDS receiver signal clock |
|
16 |
GND |
Ground |
|
17 |
RxIN3- |
LVDS receiver signal channel 3 |
|
18 |
RxIN3+ |
LVDS receiver signal channel 3 |
|
19 |
GND |
Ground |
|
20 |
NC |
No Connection |
|
21 |
NC |
No Connection |
|
22 |
NC |
No Connection |
|
23 |
GND |
Ground |
|
24 |
GND |
Ground |
|
25 |
GND |
Ground |
|
26 |
VCC |
Power Supply |
|
27 |
VCC |
Power Supply |
|
28 |
VCC |
Power Supply |
|
29 |
VCC |
Power Supply |
|
30 |
VCC |
Power Supply |
- Length: about 26cm
- 30 Pins & 20 Holes
- 5 pairs of blue&white wires
- Use for connecting the LCD Controller Board
- Compatibility：M185XW01、CLAA185WA02、CLAA185WA03、CLAA185WA05、HT185WX1、LC190WH1-TLC1、LM185WH1-TLA3、LM185WH1-TLH1、LM185WH1-TLFA、M185B1-L01、M185B1-L06、V185B1-L01、MT185GW01 V.0、MT185GW01 V.A G185XW01（V0） G185XW01（V1）......
- FIX-30Pin-D8 LVDS cable x1
