LCD Monitor Board
Home >> Products>> LCD/LED Controller Board >> LCD Monitor Board
VGA HDMI USB contoller board
Support Max Resolution: 1920x1200
Panel Signal Interface: Single I dual port LVDS interface

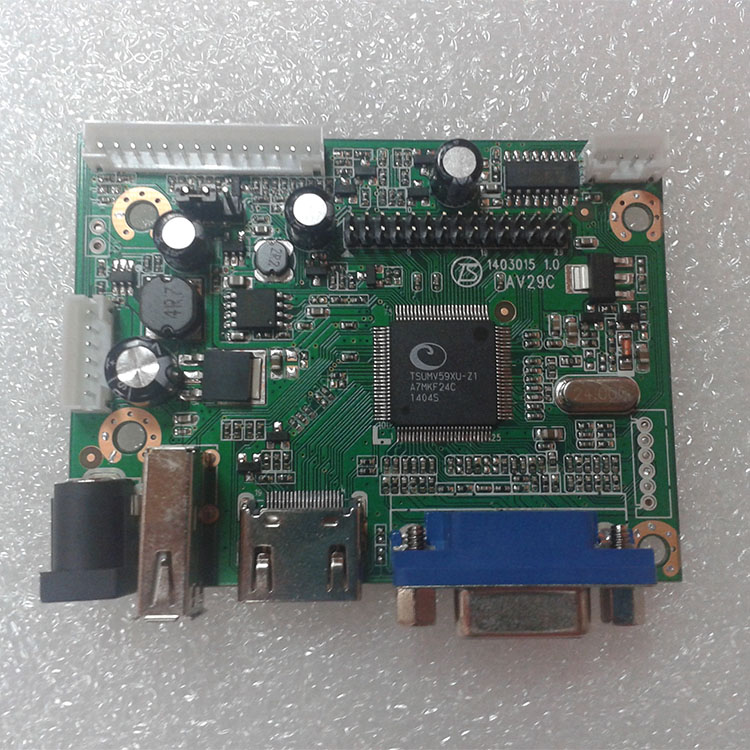

AV29C LCD Controller board with VGA+HDMI+USB
| LCD Controller board with VGA+HDMI+USB | ||
| Product Overview |
AV29C is a suitable for the Asia Pacific and Middle East markets AV control board that can support a maximum resolution of 26 inches or less of 1920 × 1080 LED I LCD Monitor |
|
| Product Features | ||
| Product Type | AV29C | |
| CHIPSET | Single-chip MSTV29 | |
| Screen panel |
Flooding screen interface |
Single I dual port LVDS interface |
|
Maximum resolution |
1920x1200 |
|
| Power |
Operating Voltage |
12V or 12V + 5V |
|
Flooding screen voltage |
3.3V or 5V or 12V |
|
|
Power Mode |
Support for low-power mode, standby mode |
|
|
Standby power |
<1W |
|
|
OSD LANGUAGE |
Simplified Chinese, Traditional, Chinese, English, French, German, Spanish, Italian, Japanese, Korean | |
|
KEY FUNCTION |
POWER, MENU, +I-, AUTOIEXIT | |
|
Audio Output |
2x2W(80) | |
| Key board with LED connector | ||
|
NO. |
Interface Definition |
Functional Description |
|
1 |
5V |
5V |
|
2 |
IR |
IR |
|
3 |
GND |
GND |
|
4 |
KO |
Button interface KO |
|
5 |
RLED |
The red LED |
|
6 |
GLED |
Green LED |
|
7 |
K1 |
Button interface K1 |
|
8 |
K2 |
Button interface K2 |
|
9 |
K3 |
Button interface K3 |
|
10 |
K4 |
Button interface K4 |
|
11 |
K5 |
Button interface K5 |
|
12 |
K6 |
Button interface K6 |
|
13 |
K7 |
Button interface K7 |
| Speaker Interface | ||
|
NO. |
Interface Definition |
Functional Description |
|
1 |
L+ |
Left channel positive output |
|
2 |
L- |
Left channel negative output |
|
3 |
R- |
Right channel negative output |
|
4 |
R+ |
Right channel output positive |
| Inverter Interface | ||
|
NO. |
Interface Definition |
Functional Description |
|
1 |
GND |
GND |
|
2 |
GND |
GND |
|
3 |
ADJ |
Backlight control |
|
4 |
EN |
Backlight switch |
|
5 |
12V |
12V voltage |
|
6 |
12V |
12V voltage |
